Ion Exchangers
Ion Exchangers
& Conductivity Meters
The most cost-effective option to demineralized water
Ion exchangers remove dissolved ions effectively.
The resin can be regenerated by deionization using acid and bases.
It is the most economic option to produce deionized water for various applications.
NEPTEC ion exchangers deliver reproducible demineralised water
with a permanently low level of conductivity and meet all common standards,
such as ASTM, CLSI and DIN EN 285
Ion Exchangers & Conductivity Meters
The most cost-effective option to demineralized water
Ion exchangers remove dissolved ions effectively. The resin can be regenerated by deionization using acid and bases.
It is the most economic option to produce deionized water for various applications.
NEPTEC ion exchangers deliver reproducible demineralised water with a permanently low level of conductivity and meet all common standards, such as ASTM, CLSI and DIN EN 285
The right cartridge for your application
We offer a huge variety of ion exchangers and conductivity meters. All conventional cartridges are in our product portfolio.
Ion exchanger, plastic & unpressurised
Ion exchanger, stainless steel
Ion exchanger, plastic (GRP)
Digital conductivity meters
Analogue conductivity meter
Whether for small quantities or for a large amount of demineralised water. NEPTEC provides the perfect solution for your case of application.
The right cartridge
for your application
We offer a huge variety of ion exchangers and conductivity meters. All conventional cartridges are in our product portfolio.
Ion exchanger, plastic & unpressurised
Ion exchanger, stainless steel
Ion exchanger, plastic (GRP)
Digital conductivity meters
Analogue conductivity meter
Whether for small quantities or for a large amount of demineralised water. NEPTEC provides the perfect solution for your case of application.

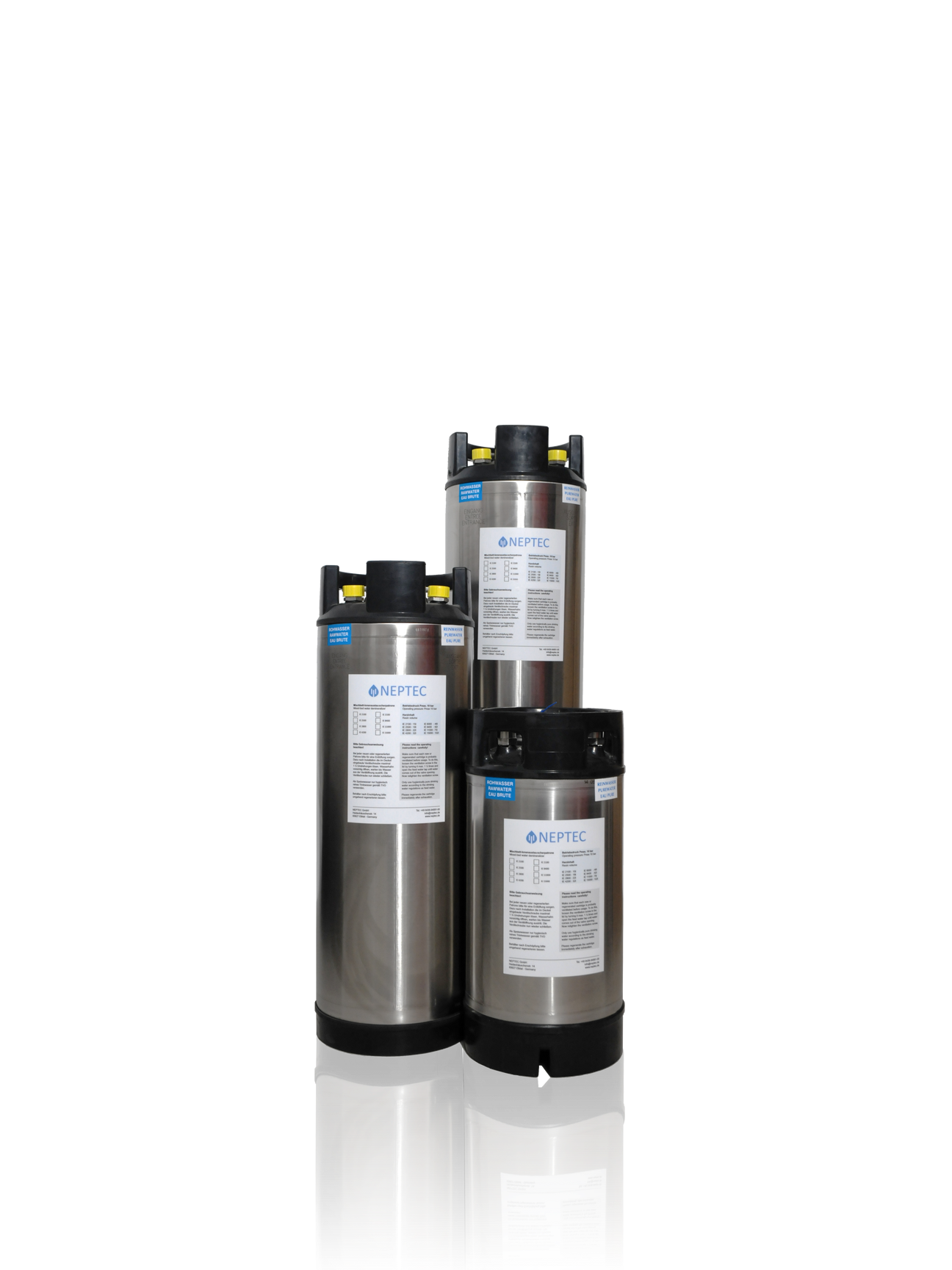

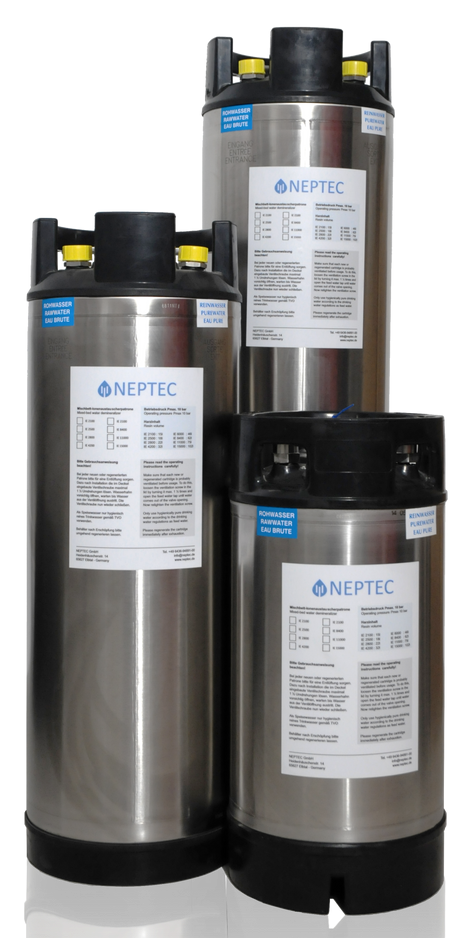

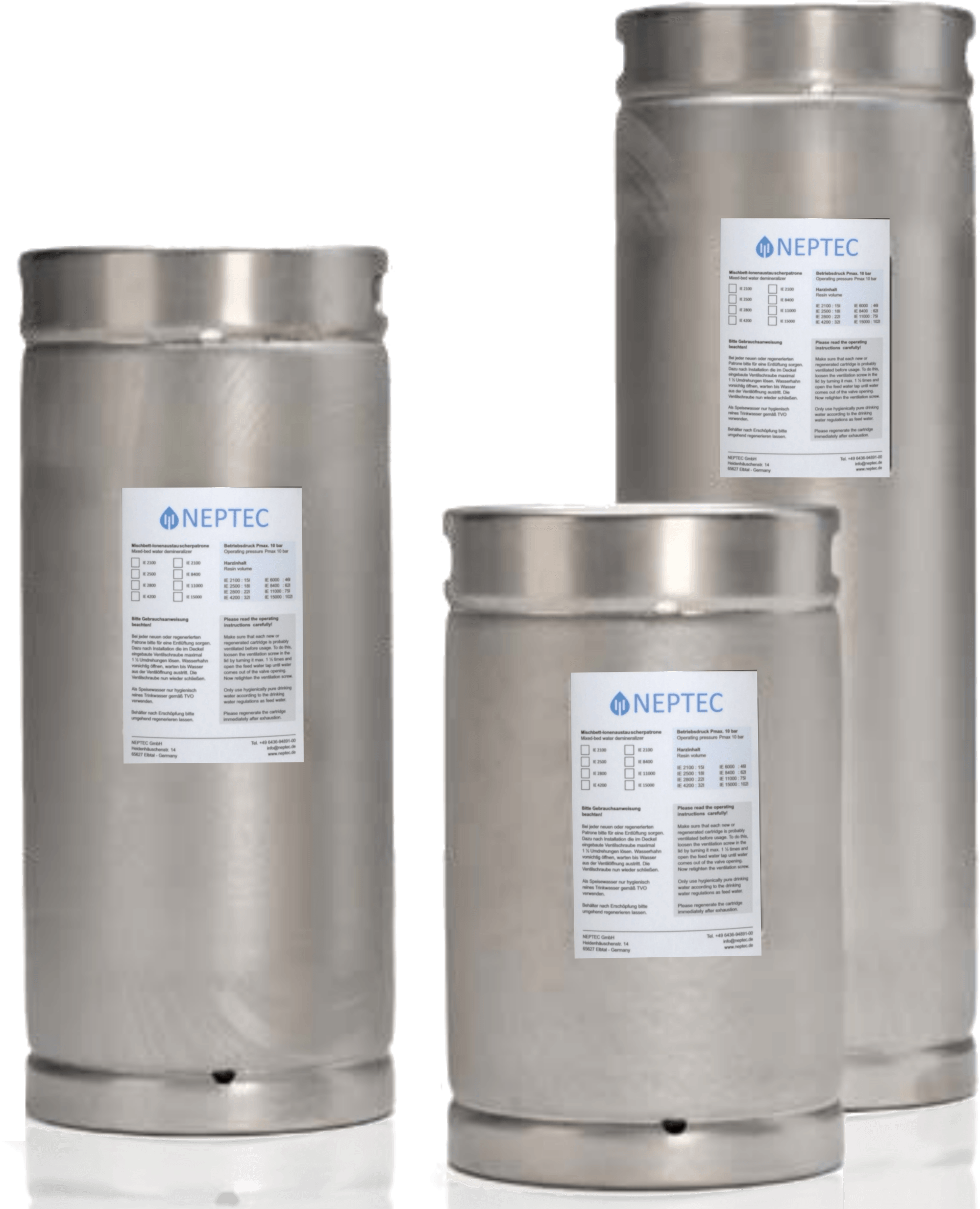

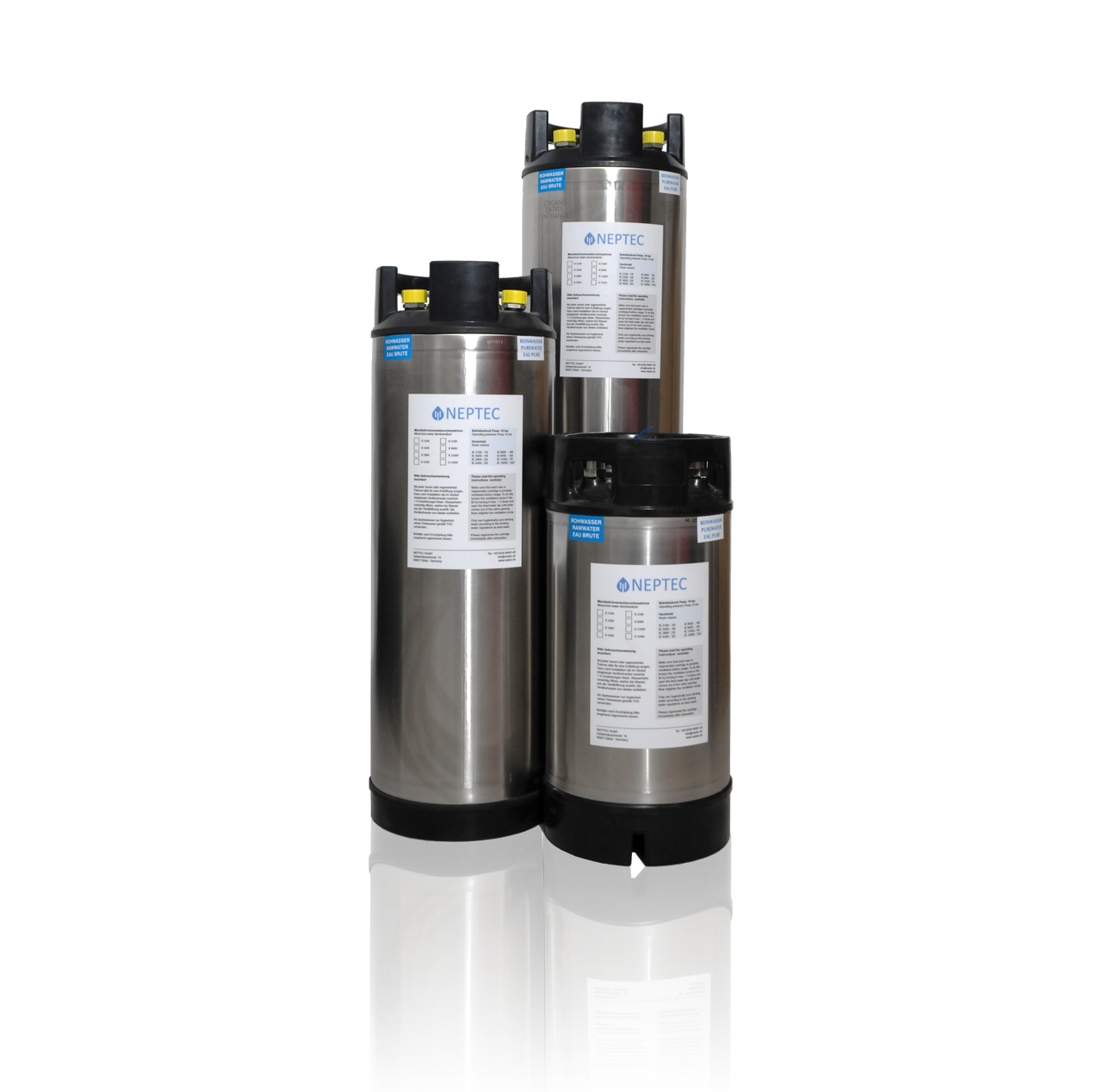

Ion exchangers - stainless steel
Pressure resistant cartridges (10 bar) made of stainless steel with carrying handles.
Typically filled with regenerable high-quality mixed-bed resin.
The resin can be customised depending on the requirements.
Quick couplings and additional accessories are available on request.
| Type | Performance l/h | Capacity in l at 300 µS/cm * | Operating temperature in °C (max.) | Connection | Order number | Data sheet (PDF) |
|---|---|---|---|---|---|---|
| IE 2500 | 500 | 2500 | 40 | 3/4" | 10000200 | Download |
| IE 2800 | 600 | 2800 | 40 | 3/4" | 10000201 | Download |
| IE 3600 | 1000 | 3600 | 40 | 3/4" | 10000202 | Download |
| IE 4200 | 1000 | 4200 | 40 | 3/4" | 10000203 | Download |
| IE 5600 | 1800 | 5600 | 40 | 3/4" | 10000204 | Download |
| IE 6000 | 1800 | 6000 | 40 | 3/4" | 10000205 | Download |
| IE 8400 | 2400 | 8400 | 40 | 3/4" | 10000206 | Download |
| IE 11000 | 2400 | 11000 | 40 | 3/4" | 10000207 | Download |
| IE 15000 | 2400 | 15000 | 40 | 3/4" | 10000208 | Download |
* The capacity can vary depending on the feed water.

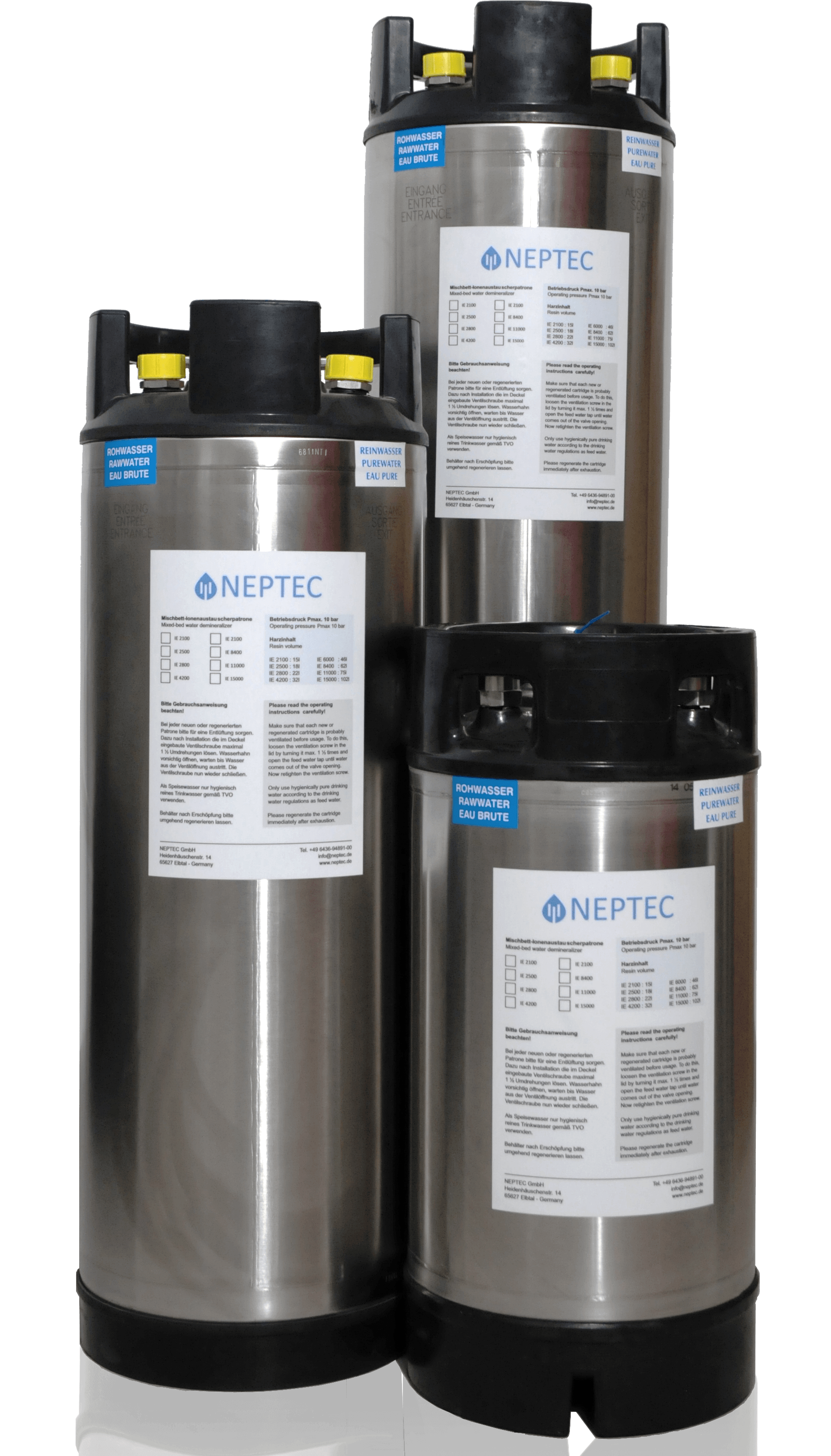

Ion exchangers - stainless steel
Pressure re sistant cartridges (10 bar) made of stainless steel with carrying handles.Typically filled with regenerable high-quality mixed-bed resin. The resin can be customised depending on the requirements. Quick couplings and additional accessories are available on request.
| Type | Performance l/h | Capacity in l at 300 µS/cm * | Operating temperature in °C (max.) | Connection | Order number | Data sheet (PDF) |
|---|---|---|---|---|---|---|
| IE 2500 | 500 | 2500 | 40 | 3/4" | 10000200 | Download |
| IE 2800 | 600 | 2800 | 40 | 3/4" | 10000201 | Download |
| IE 3600 | 1000 | 3600 | 40 | 3/4" | 10000202 | Download |
| IE 4200 | 1000 | 4200 | 40 | 3/4" | 10000203 | Download |
| IE 5600 | 1800 | 5600 | 40 | 3/4" | 10000204 | Download |
| IE 6000 | 1800 | 6000 | 40 | 3/4" | 10000205 | Download |
| IE 8400 | 2400 | 8400 | 40 | 3/4" | 10000206 | Download |
| IE 11000 | 2400 | 11000 | 40 | 3/4" | 10000207 | Download |
| IE 15000 | 2400 | 15000 | 40 | 3/4" | 10000208 | Download |

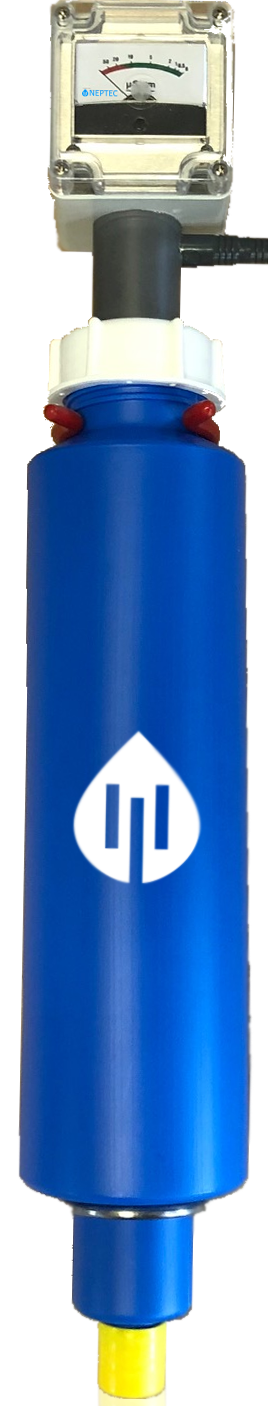

Ion exchangers - synthetic
Pressure resistant and pressure less cartridges made of plastic.
Typically filled with regenerable high-quality mixed-bed resin.
The resin can be customised depending on the requirements.
Additional accessories are available on request.
* The capacity can vary depending on the feed water.

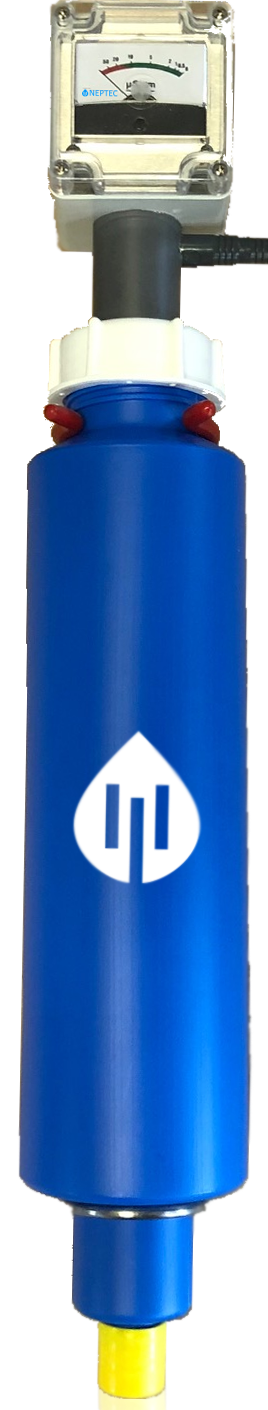

Ion exchangers - synthetic
Pressure resistant and pressure less cartridges made of plastic. Typically filled with regenerable high-quality mixed-bed resin. The resin can be customised depending on the requirements.
Additional accessories are available on request.

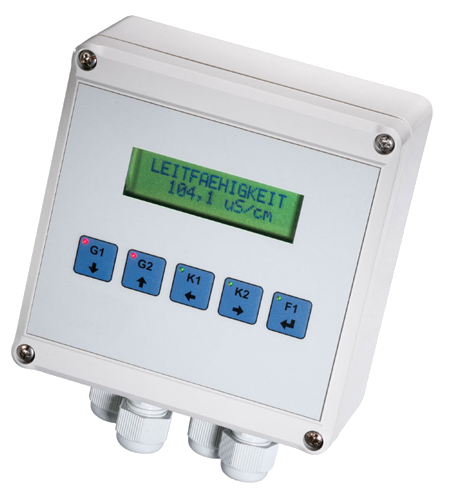

Conductivity meter
Easy and reliable online measurement of pure and ultrapure water for ion exchange cartridges.
Ready to use with connecting cable, power supply unit, set of two 1.5 m hoses and measuring cell.
Additional accessories are available on request
| Type | Display | Measuring range in µS/cm | Limit value adjustment | Installation | Option | Order number | Data sheet (PDF) |
|---|---|---|---|---|---|---|---|
| A 50 | Analog | up to 50 | No | Stainless steel cartridge | - | 10000217 | Download |
| D 20 GFK | Digital | up to 20 | Yes | Plastic (GRP) cartridges | SV, pot.-free | 10000220 | Download |

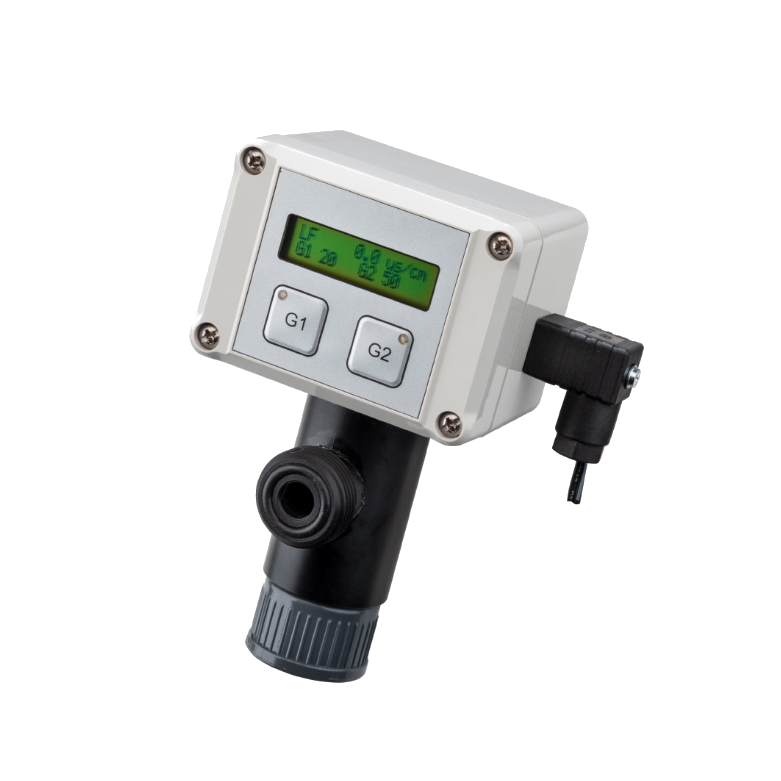

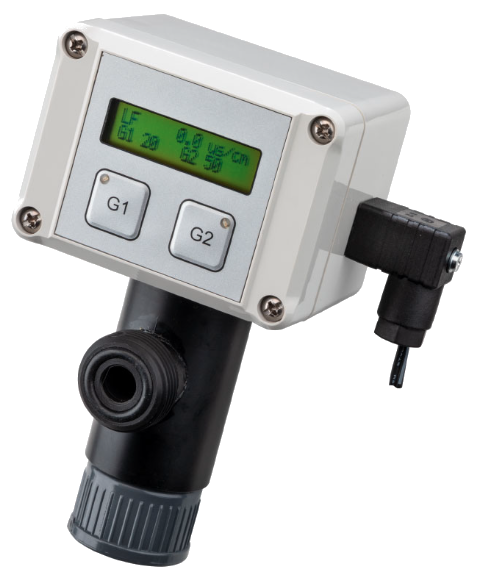

| D 200 | Digital | up to 100 | Yes | Stainless steel cartridge / wall | SV, pot.-free | 10000215 | Download |

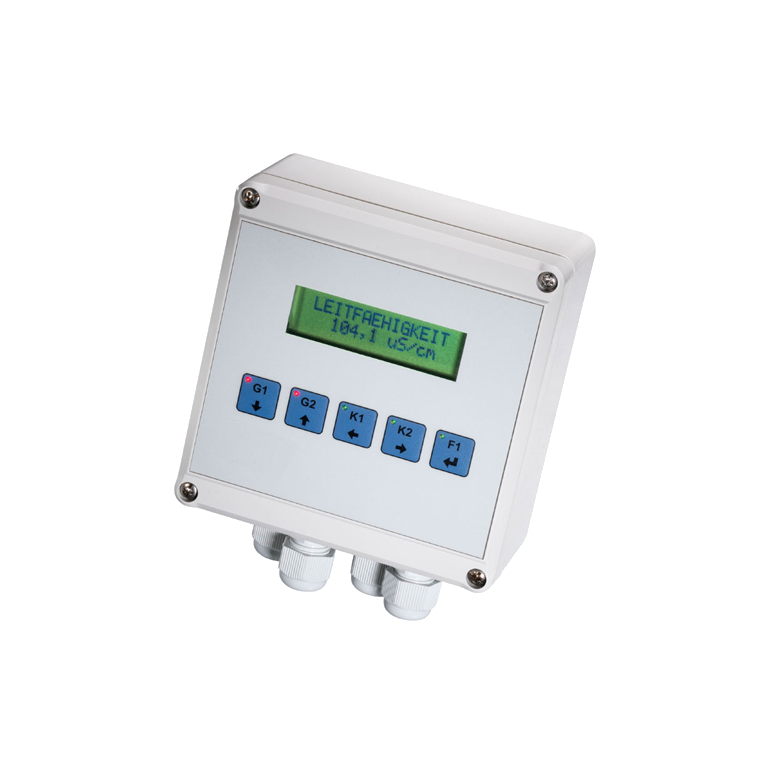

| DB 900 | Digital | up to 20 | Yes | Stainless steel cartridge | SV, pot.-free | 10000530 | Download |
| LED 320 | LED | up to 20 | 10 / 10-20 / 20 | Stainless steel cartridge | Battery- operated | 10000219 | Download |
| LED 520 | LED | up to 20 | 1,0 / 1-5 / 5-10 / 10-20 / 20 | Stainless steel cartridge | - | 10000218 | Download |
Conductivity meter
Easy and reliable online measurement of pure and ultrapure water for ion exchange cartridges.
Ready to use with connecting cable, power supply unit, set of two 1.5 m hoses and measuring cell. Additional accessories are available on request.
| Type | Display | Measuring range in µS/cm | Limit value adjustment | Installation | Option | Order number | Data sheet (PDF) |
|---|---|---|---|---|---|---|---|
| A 50 | Analog | up to 50 | No | Stainless steel cartridge | - | 10000217 | Download |
| D 20 GFK | Digital | up to 20 | Yes | Plastic (GRP) cartridges | SV, pot.-free | 10000220 | Download |
| D 200 | Digital | up to 100 | Yes | Stainless steel cartridge / wall | SV, pot.-free | 10000215 | Download |
| DB 900 | Digital | up to 20 | Yes | Stainless steel cartridge | SV, pot.-free | 10000530 | Download |
| LED 320 | LED | up to 20 | 10 / 10-20 / 20 | Stainless steel cartridge | Battery- operated | 10000219 | Download |
| LED 520 | LED | up to 20 | 1,0 / 1-5 / 5-10 / 10-20 / 20 | Stainless steel cartridge | - | 10000218 | Download |
