HALIOS 40 & HALIOS ID 40 ∙ Type 1 + 2 - Modular all-in-one systems with dispenser

HALIOS 40

Type 1 + 2 (Ultrapure/Pure Water) from tap water


The Complete Lab Water Solution


The system is modular in design and the

ultimate laboratory water solution with a production rate of 40L/h.


Each system meets and exceeds

Type 1 and Type 2 water directly from tap water.


HALIOS 40 systems come with a 30L, 60L or 100L tank

and are optionally upgradable (EDI module, UV lamp, ultrafilter, etc.)

to adapt to your specific requirements and make your work

as pleasant and comfortable as possible.


Maximise your laboratory productivity with an

innovative HALIOS lab water system.


HALIOS 40

Type 1 + 2 (Ultrapure/Pure Water) from tap water

The Complete Lab Water Solution


The system is modular in design and the ultimate laboratory water solution with a production rate of 40L/h.


Each system meets and exceeds Type 1 and Type 2 water directly from tap water.


HALIOS 40 systems come with a 30L, 60L or 100L tank

and are optionally upgradable (EDI module, UV lamp, ultrafilter, etc.) to adapt to your specific requirements and make your work as pleasant and comfortable as possible.


Maximise your laboratory productivity with an

innovative HALIOS lab water system.

Innovative User Interface
  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature, production rate, operating pressure and TOC, your HALIOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

  • ECO Mode

    The ECO mode extends cartridge life by up to 20%. This reduces operating costs and the amount of waste. This pays off both economically and ecologically.

   Innovative User Interface
  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature, production rate, operating pressure and TOC, your HALIOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

  • ECO Mode

    The ECO mode extends cartridge life by up to 20%. This reduces operating costs and the amount of waste. This pays off both economically and ecologically.

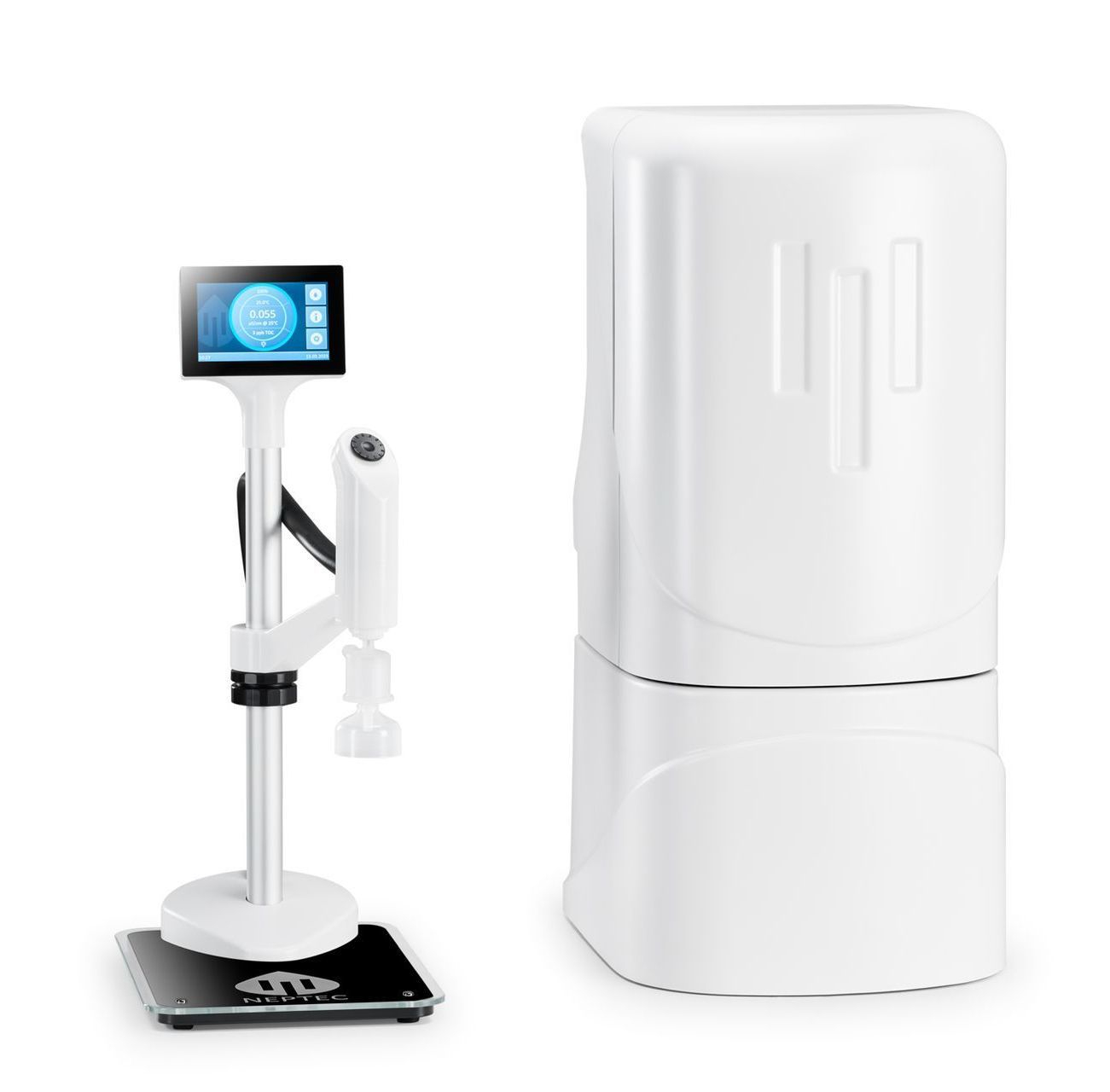

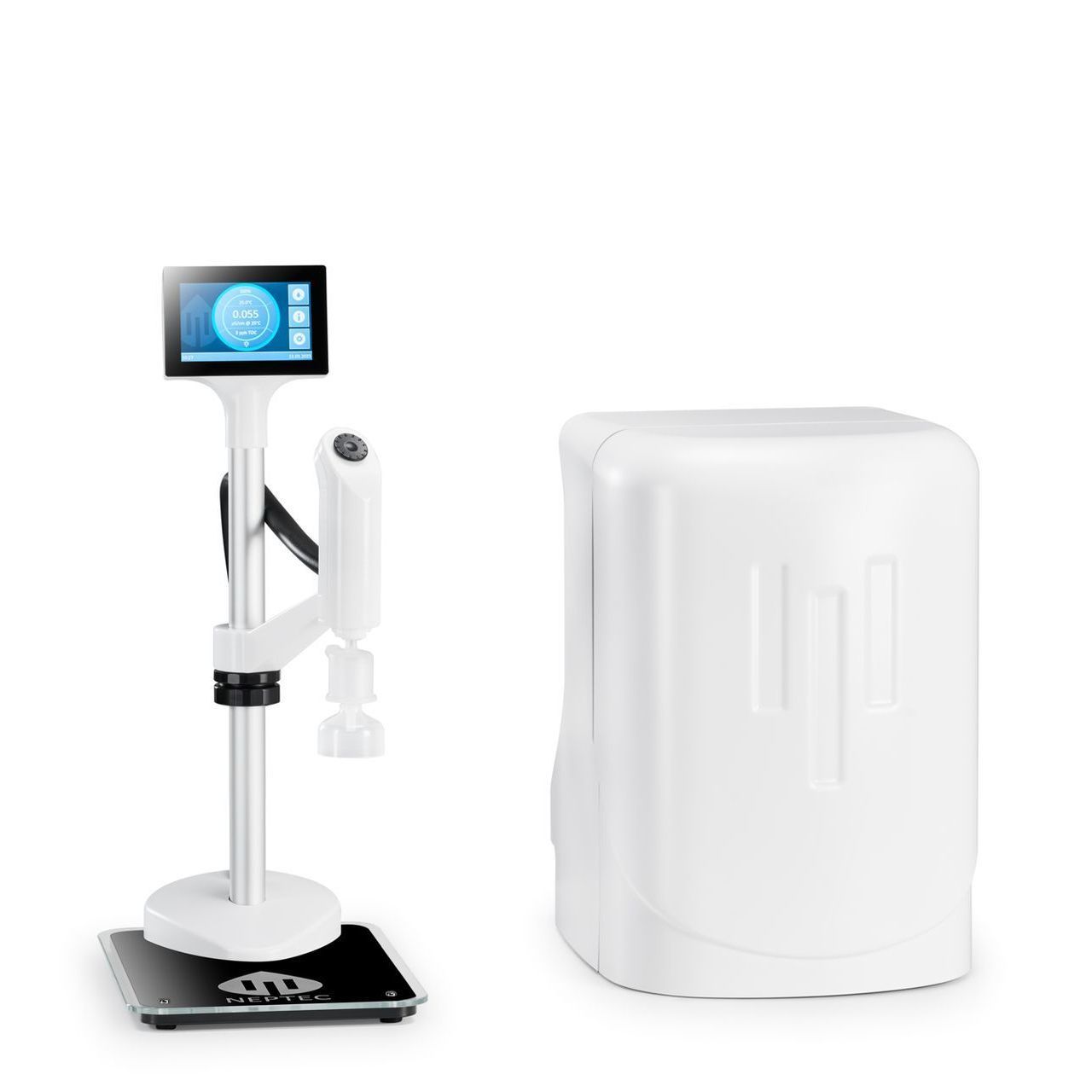

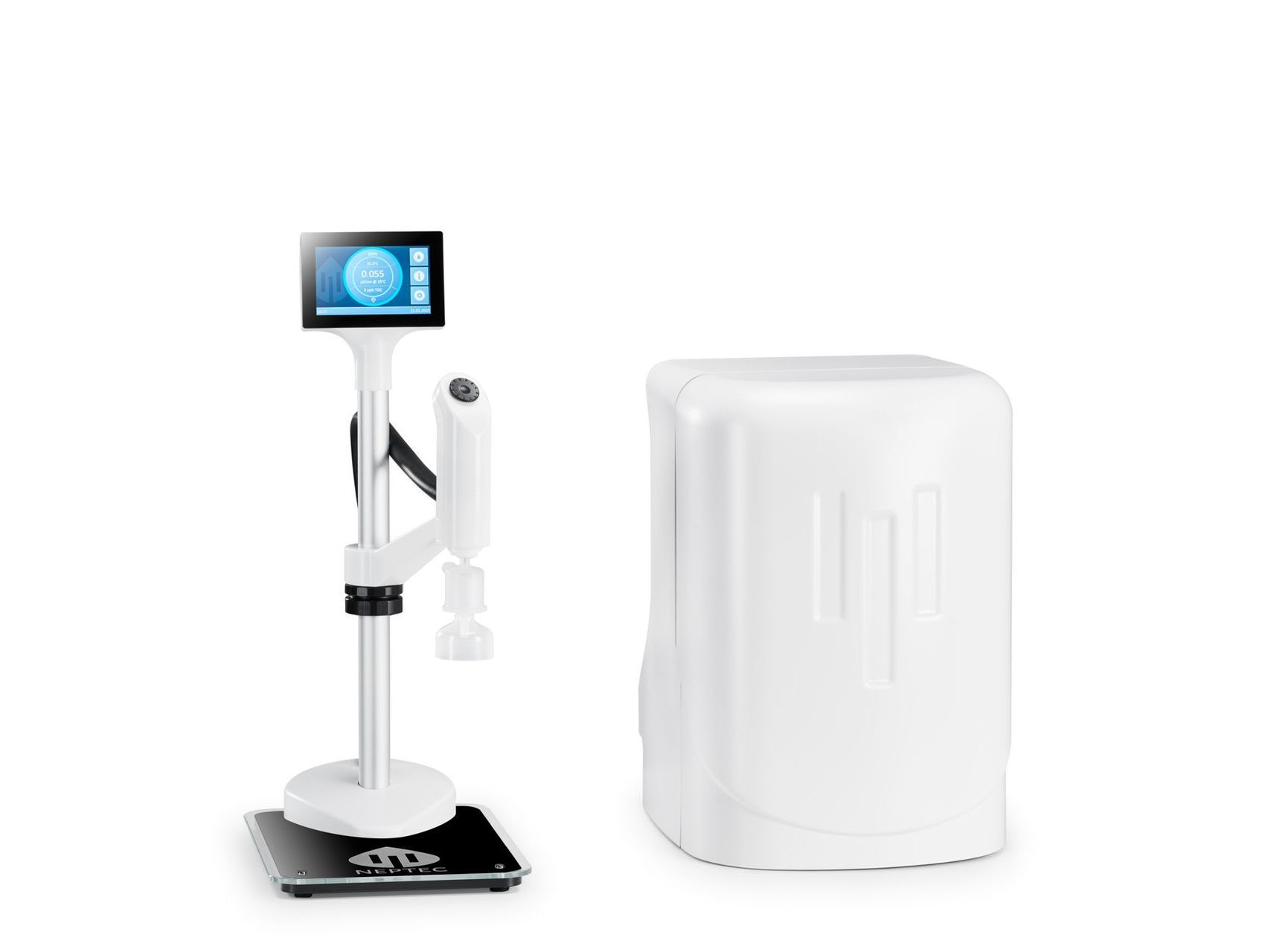

External Tabletop Dispenser
  • Ergonomic Design

    Dispensing ultrapure water from your HALIOS dispenser feels immediately familiar. The sophisticated shape let you operate the unit easily with just one-hand. All dispensing functions that are useful for daily work in the laboratory can be accessed directly on the handle.

  • Optimized Lab Space

    Interact only with your HALIOS dispenser. The compact main system can be easily integrated in the lab environment. For labs needing more than one ultrapure water point-of-use, up to four dispensers can be connected.

  • Maximum Flexibility

    Detach and reattach your HALIOS dispensing handle in an instant. With the enormous range you are prepared for every situation.

   External Tabletop Dispenser
  • Ergonomic Design

    Dispensing ultrapure water from your HALIOS dispenser feels immediately familiar. The sophisticated shape let you operate the unit easily with just one-hand. All dispensing functions that are useful for daily work in the laboratory can be accessed directly on the handle.

  • Optimized Lab Space

    Interact only with your HALIOS dispenser. The compact main system can be easily integrated in the lab environment. For labs needing more than one ultrapure water point-of-use, up to four dispensers can be connected.

  • Maximum Flexibility

    Detach and reattach your HALIOS dispensing handle in an instant. With the enormous range you are prepared for every situation.

Compact Production Unit
  • Reliable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    Your HALIOS system provides ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your HALIOS device complies with USP and GLP requirements.

  • Lowest TOC content

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • EDI Module

    Our HALIOS 40 can be upgraded with an EDI module. The ion exchange beds in the EDI cell are regenerated continuously so that they do not exhaust in the same way as common ion exchangers.  An EDI unit may operate for many years before a replacement is required. Typically product water resistivity of >15 MΩ.cm is consistently achieved using this process. This technology will increase the lifetime of the final polishing cartridge significantly and also deliver more consistent purity than single-bed ion-exchange systems that may release weakly bound ions as the media exhausts. The EDI module also reduce the release of organic impurities. This helps to reduce your operating costs.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of our HALIOS series. We offer a complete range of services, including validation support using calibrated equipment and a qualification workbook.

Compact Production Unit
  • Reliable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    Your HALIOS system provides ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your HALIOS device complies with USP and GLP requirements.

  • Lowest TOC content

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • EDI Module

    HALIOS 40 systems can be upgraded with an EDI module. The ion exchange beds in the EDI cell are regenerated continuously so that they do not exhaust in the same way as common ion exchangers.  An EDI unit may operate for many years before a replacement is required. Typically product water resistivity of >15 MΩ.cm is consistently achieved using this process. This technology will increase the lifetime of the final polishing cartridge significantly and also deliver more consistent purity than single-bed ion-exchange systems that may release weakly bound ions as the media exhausts. The EDI module also reduce the release of organic impurities. This helps to reduce your operating costs.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of our HALIOS series. We offer a complete range of services, including validation support using calibrated equipment and a qualification workbook.

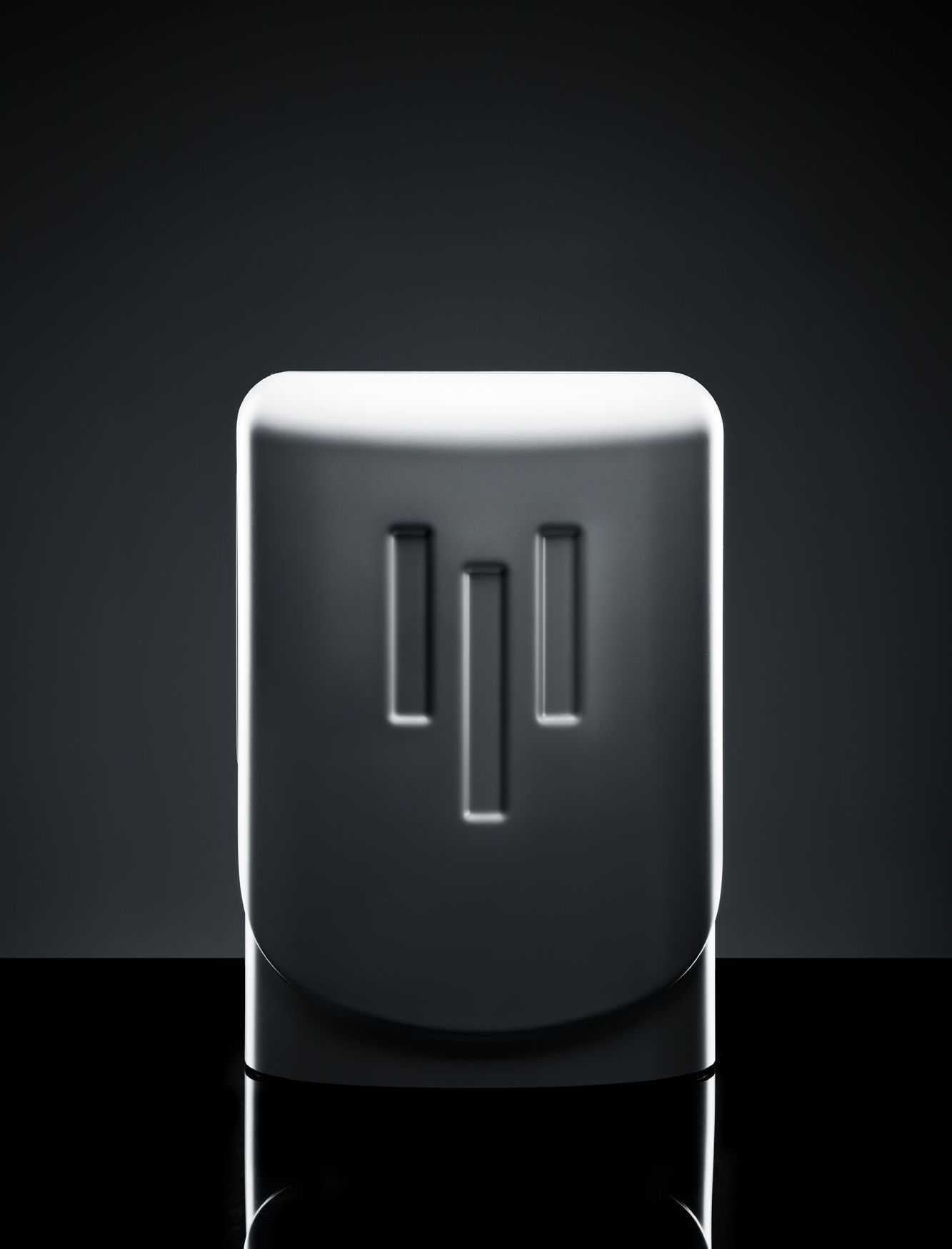

30,60 or 100L Storage Tank
  • Protection of Stored Pure Water

    Your pure water storage tank ensures that high-quality Type 2 water is always on hand and ready to use. Modern design features and a circulation protect against stagnation and bacterial contamination.

  • Cutting-edge Sensors and Monitoring

    Check and adjust the tank level in one percent steps to your specific needs.  An integrated leak water detector would prevent from a possible malfunction of the unit. As all values are continously monitored you can rely 100% on your HALIOS system which saves time and money.

  • Advanced Vent Filtration + Hygienic Overflow

    The provided filters prevent the ingress of airborne bacteria, particulates, organic vapours and CO2.

  • Optional - UV Disinfection

    An optional UV sanitization module prevents the growth and proliferation of bacteria.

   10L Storage Tank
    optional 30L, 60L and 100L
  • Protection of Stored Pure Water

    Your pure water storage tank ensures that high-quality Type 2 water is always on hand and ready to use. Modern design features and a circulation protect against stagnation and bacterial contamination.

  • Advanced Vent Filtration

    The provided filters prevent the ingress of airborne bacteria, particulates, organic vapours and CO2.

  • Cutting-edge Sensors and Monitoring

    Check and adjust the tank level in one percent steps to your specific needs.  An integrated leak water detector would prevent from a possible malfunction of the unit. As all values are continously monitored you can rely 100% on your HALIOS system which saves time and money.

  • Optional - UV Disinfection

    An optional UV sanitization module prevents the growth and proliferation of bacteria.

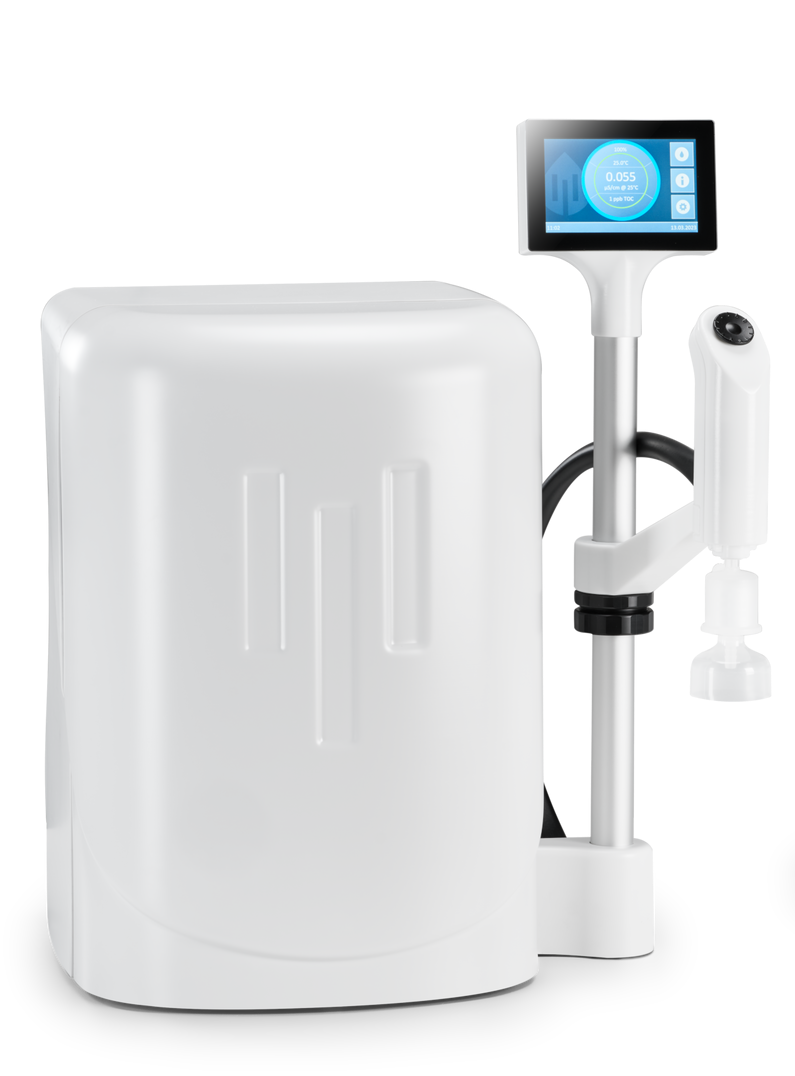

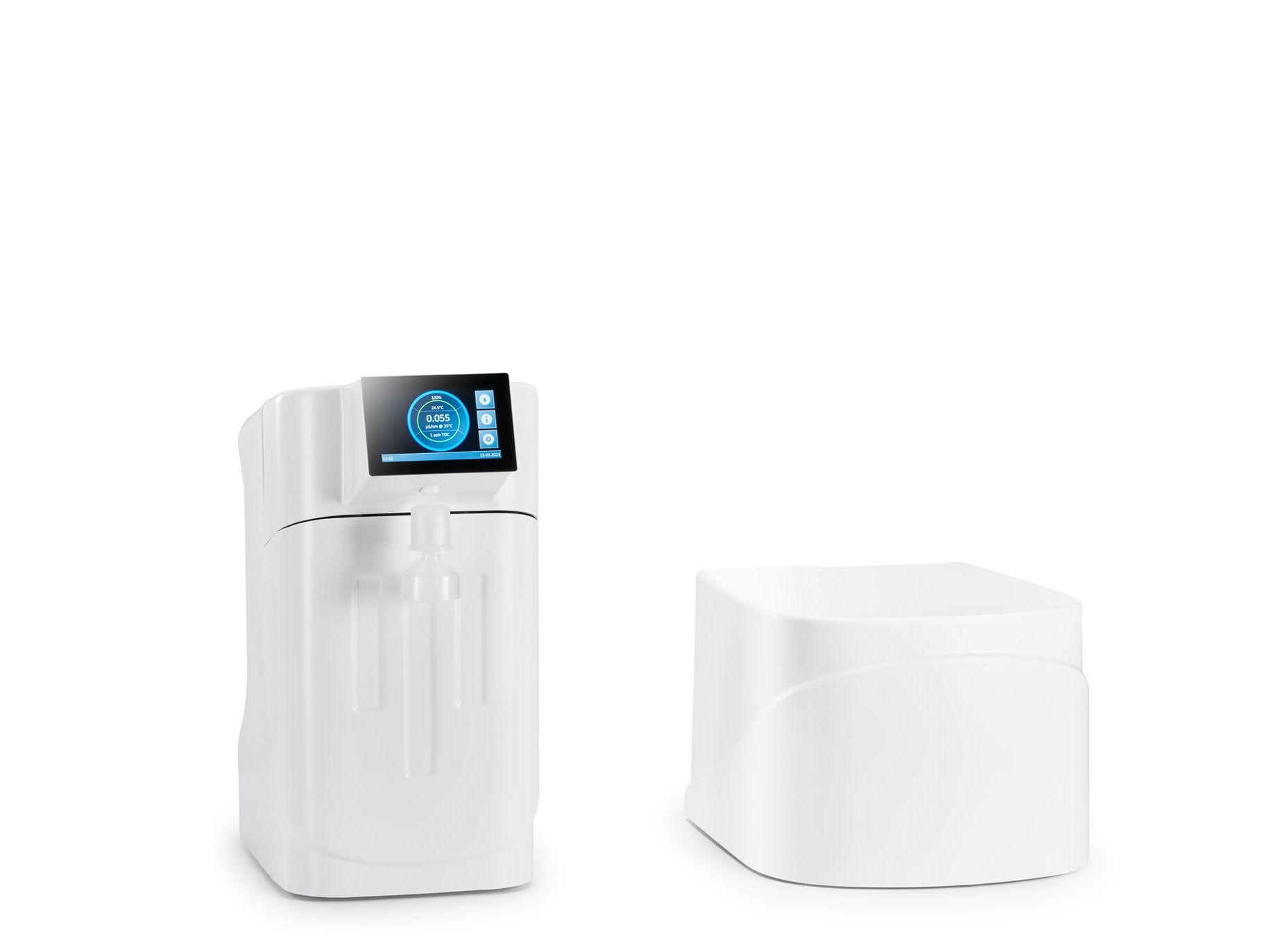

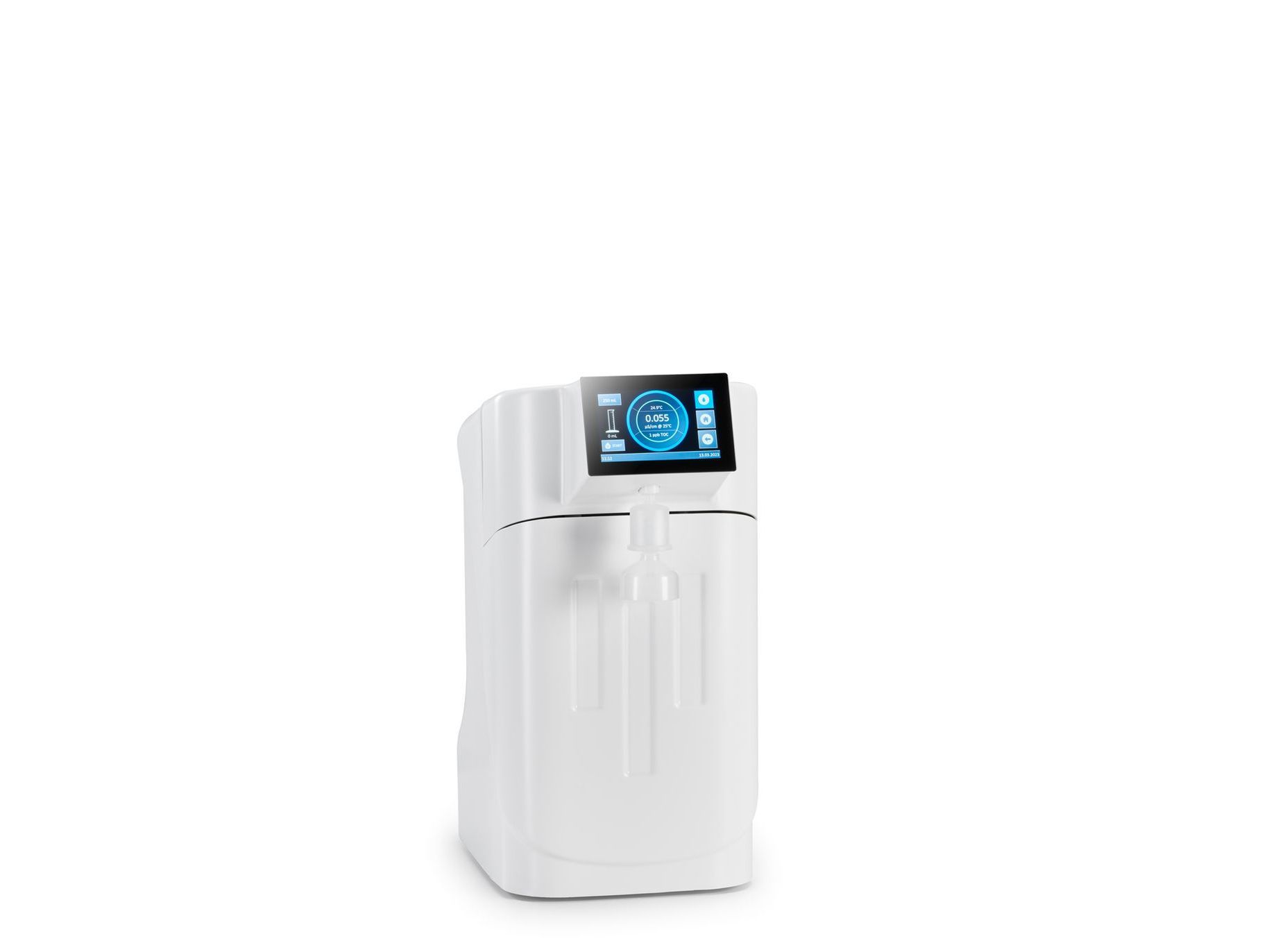

HALIOS ID 40
with Integrated Dispenser
  • ID = Integrated Dispenser

    With the proven NEPTEC operating concept using a removal wheel and an ergonomic handle. Easily operateable with just one hand. Benefit from the enormous range by releasing the HALIOS handle from the holder with a simple hand movement.

  • ID = Innovative Design

    All innovative features of our HALIOS series are still integrated. At the same time, the footprint has been optimised and the system can now be integrated into almost any laboratory environment in a space-saving way.

  • ID = Intuitive Display

    The large touch screen with the intuitive HALIOS user interface is also standard in our ID models.

   HALIOS ID 40
   with Integrated Dispenser
  • ID = Integrated Dispenser

    With the proven NEPTEC operating concept using a removal wheel and an ergonomic handle. Easily operateable with just one hand. Benefit from the enormous range byreleasing the HALIOS handle from the holder with a simple hand movement.

  • ID = Innovative Design

    All innovative features of our HALIOS series are still integrated. At the same time, the footprint has been optimised and the system can now be integrated into almost any laboratory environment in a space-saving way.

  • ID = Intuitive Display

    The large touch screen with the intuitive HALIOS user interface is also standard in our ID models.

   Specifications
Specifications

  Feed Water Requirements

Feed water quality Potable tap water
Conductivity @ 25°C < 2000µS/cm
Total organic carbon (TOC) < 1ppm
Inlet pressure 1 - 6bar
Temperature 5 - 35°C

  Ultrapure water (Type 1) Specifications

Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 2 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 2 L/min

  Pure water (Type 2) Specifications

Resistivity at 25 °C > 10 MΩ∙cm
Total organic carbon (TOC) ≤ 30 ppb
Production rate 40 L/h
Feed water requirements
Feed water quality Potable tap water
Conductivity @ 25°C < 2000µS/cm
Total organic carbon (TOC) < 1ppm
Inlet pressure 1 - 6bar
Temperature 5 - 35°C
Ultrapure water specifications (Type 1)
Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 2 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 2 L/min
Pure water specifications Tank (Type 2)
Resistivity at 25 °C > 10 MΩ∙cm
Total organic carbon (TOC) ≤ 30 ppb
Production rate 40 L/h

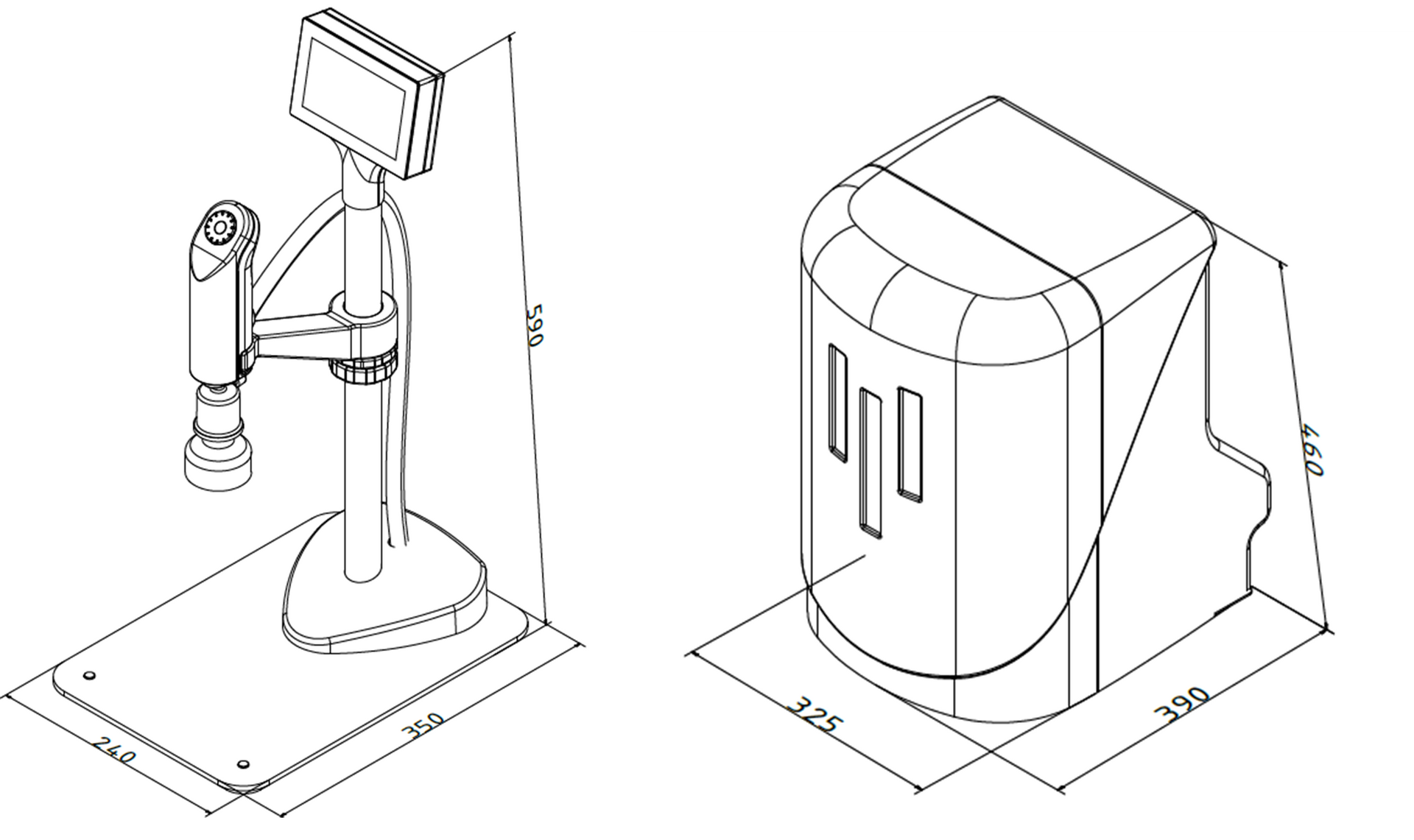

Dimensions HALIOS 6 | 12

Dimensions HALIOS ID  6 | 12

Dimensions Tank

Dimensions HALIOS 40

Dimensions HALIOS ID  40

Dimensions Tank

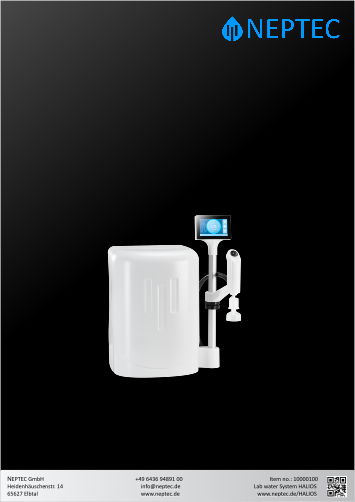

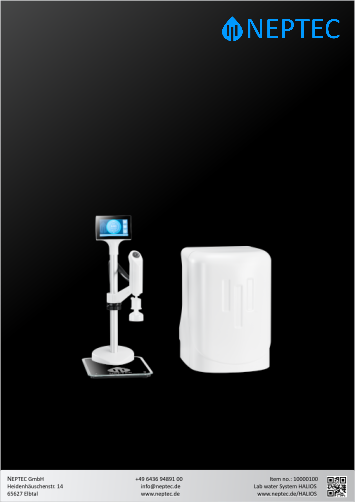

Supporting Documentation
