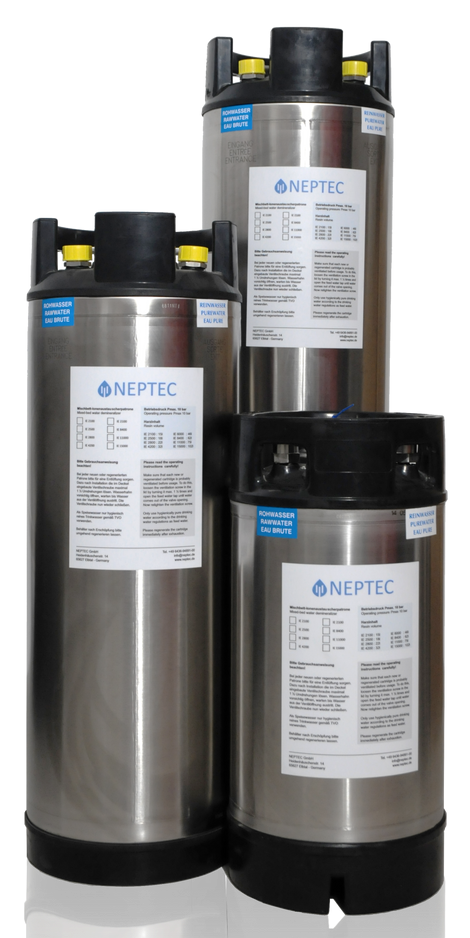

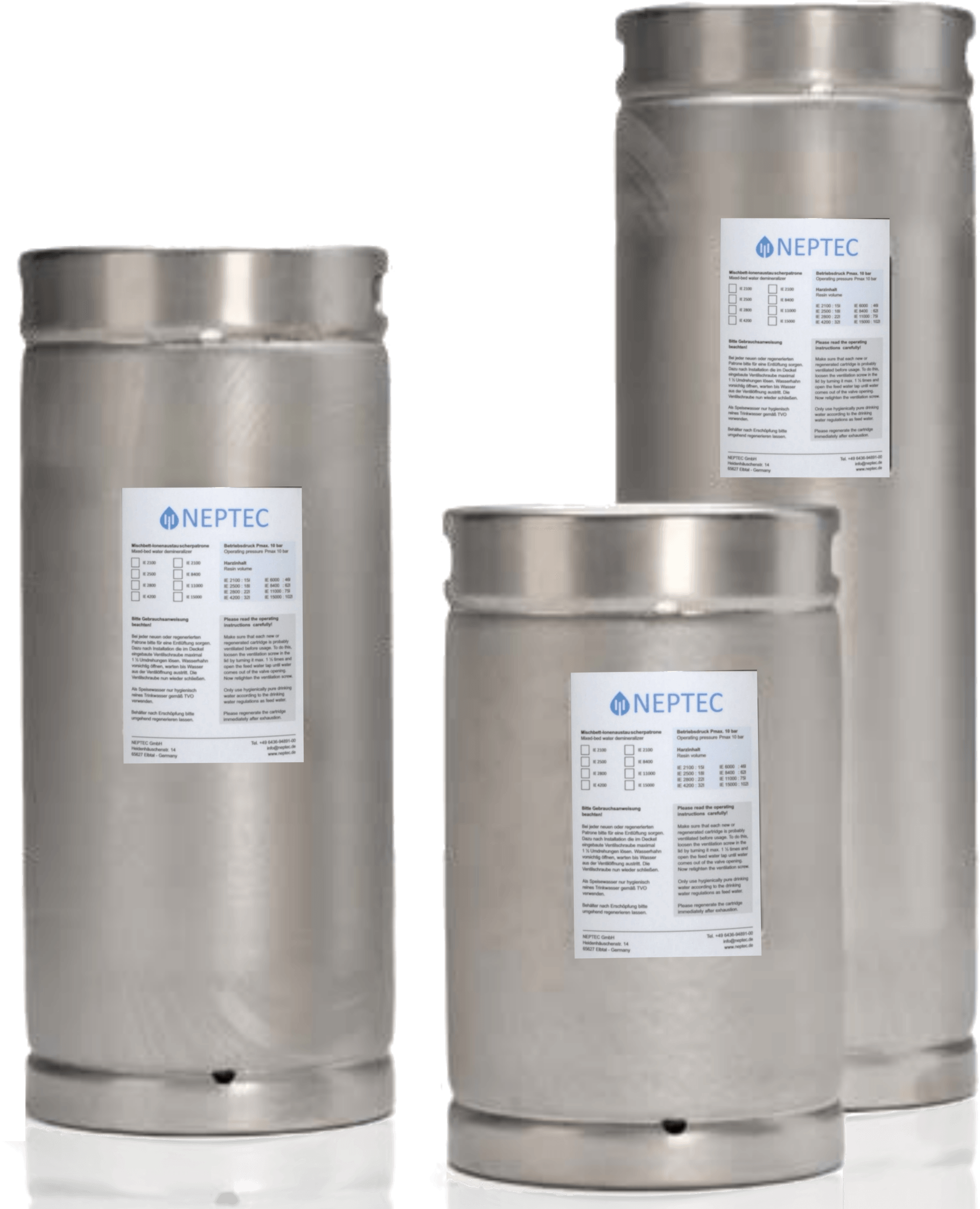

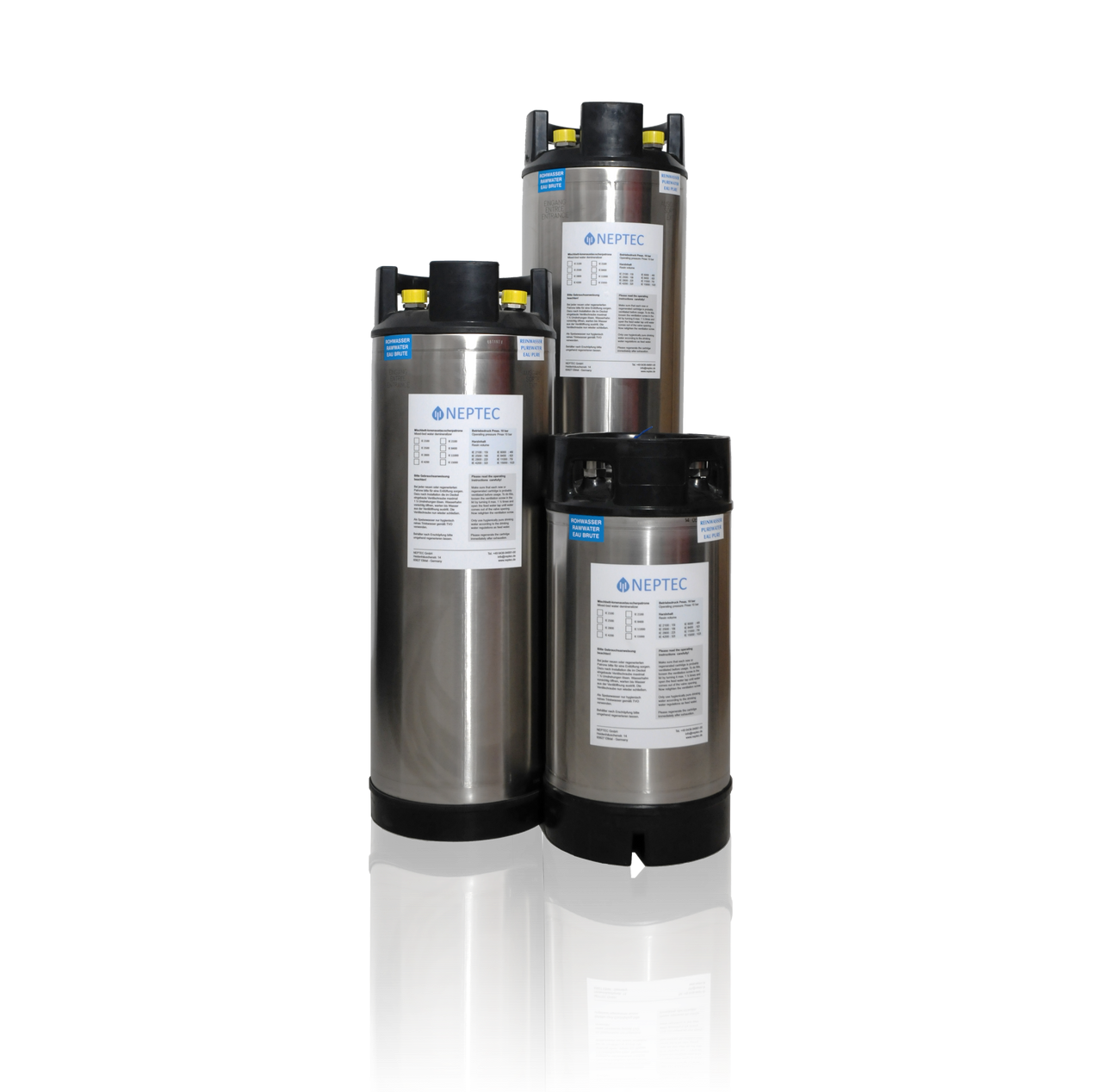

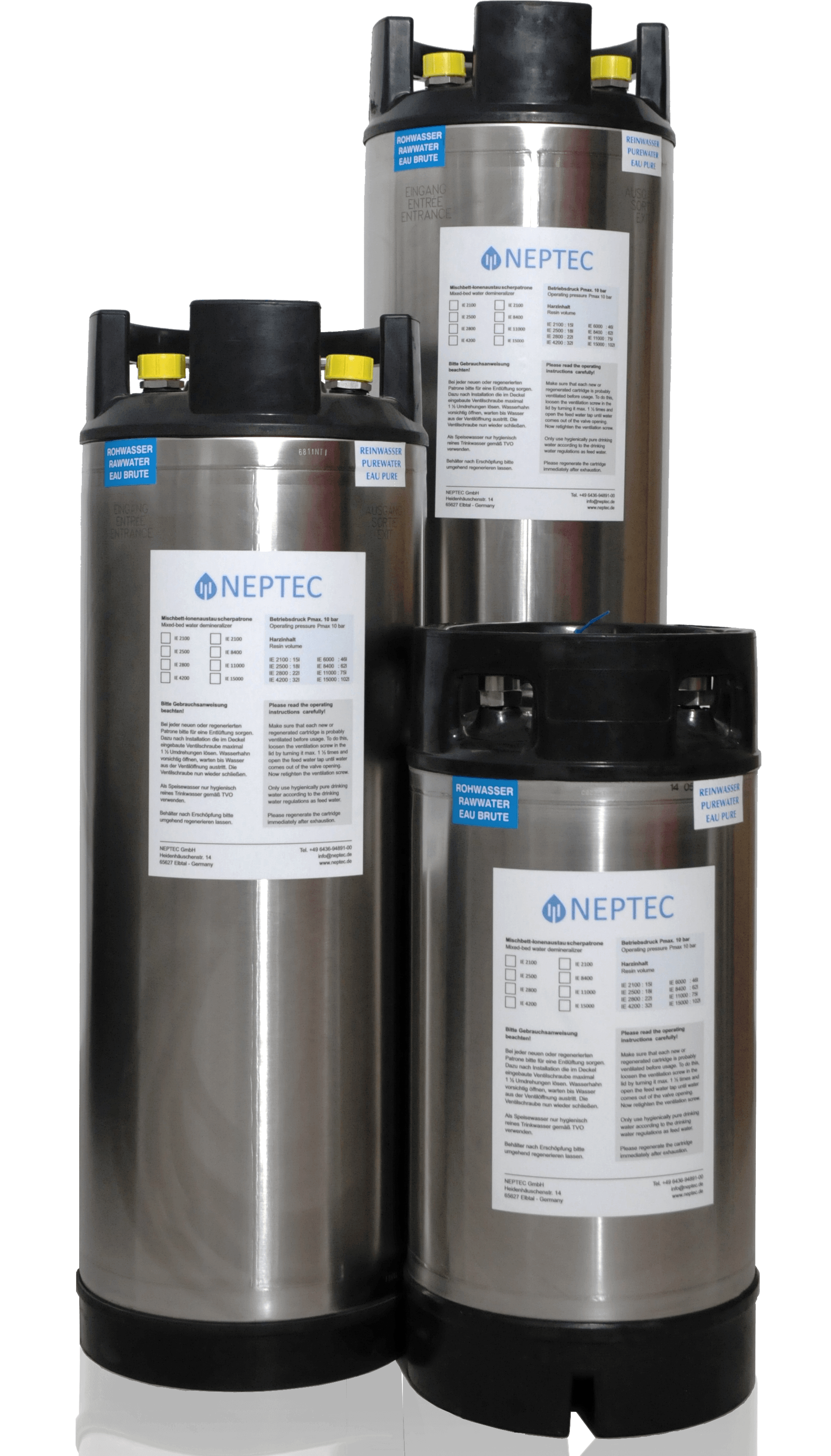

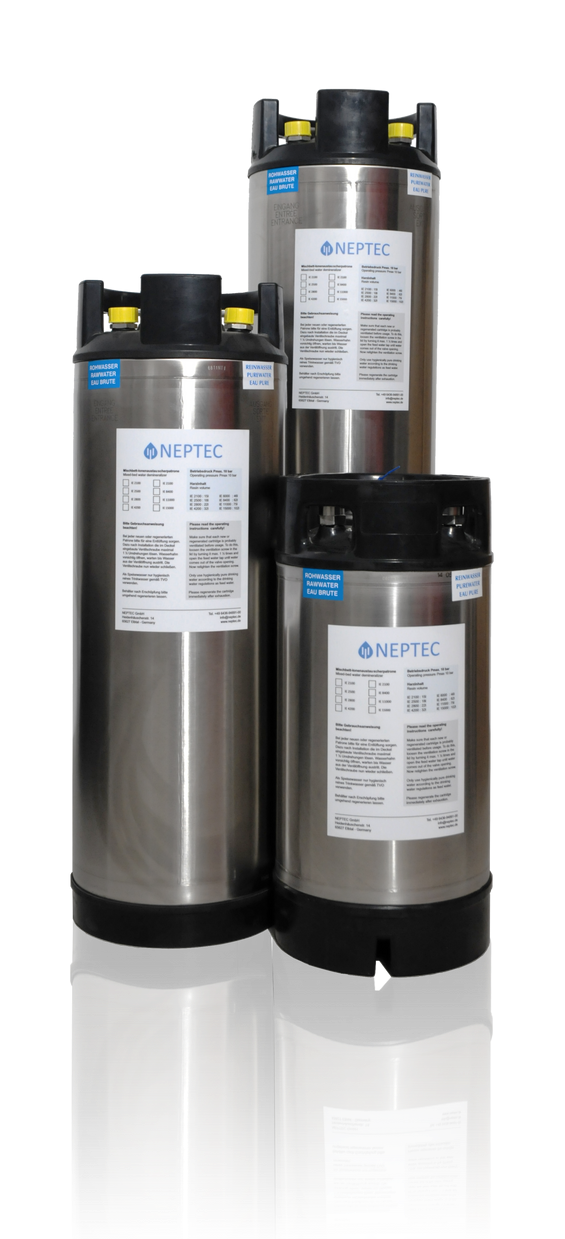

Typ | Leistung l/h | Kapazität in l bei 300 µS/cm * | Betriebs- temperatur in °C (max.) | Anschlüsse | Bestellnummer | Datenblatt (PDF) |
---|---|---|---|---|---|---|
IE 2500 | 500 | 2500 | 40 | 3/4" | 10000200 | Download |
IE 2800 | 600 | 2800 | 40 | 3/4" | 10000201 | Download |
IE 3600 | 1000 | 3600 | 40 | 3/4" | 10000202 | Download |
IE 4200 | 1000 | 4200 | 40 | 3/4" | 10000203 | Download |
IE 5600 | 1800 | 5600 | 40 | 3/4" | 10000204 | Download |
IE 6000 | 1800 | 6000 | 40 | 3/4" | 10000205 | Download |
IE 8400 | 2400 | 8400 | 40 | 3/4" | 10000206 | Download |
IE 11000 | 2400 | 11000 | 40 | 3/4" | 10000207 | Download |
IE 15000 | 2400 | 15000 | 40 | 3/4" | 10000208 | Download |

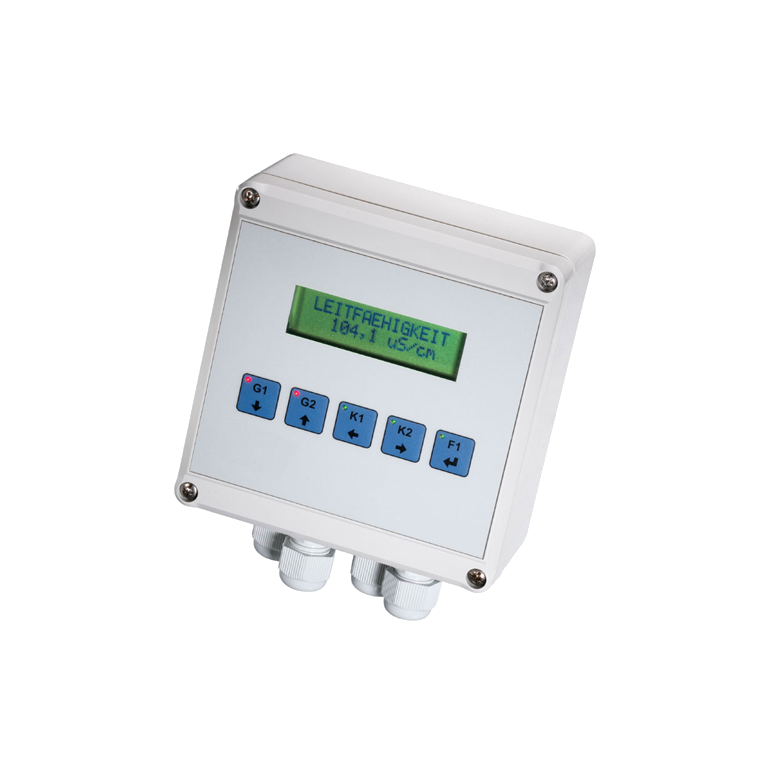

Typ | Display | Messbereich in µS/cm | Grenzwert- einstellung | Installation | Optional | Bestell -nummer | Datenblatt (PDF) |
---|---|---|---|---|---|---|---|
A 50 | Analog | bis 50 | Nein | Edelstahl Patrone | - | 10000217 | Download |
D 20 GFK | Digital | bis 20 | Ja | GFK Patrone | MGV, pot. Kontakt | 10000220 | Download |

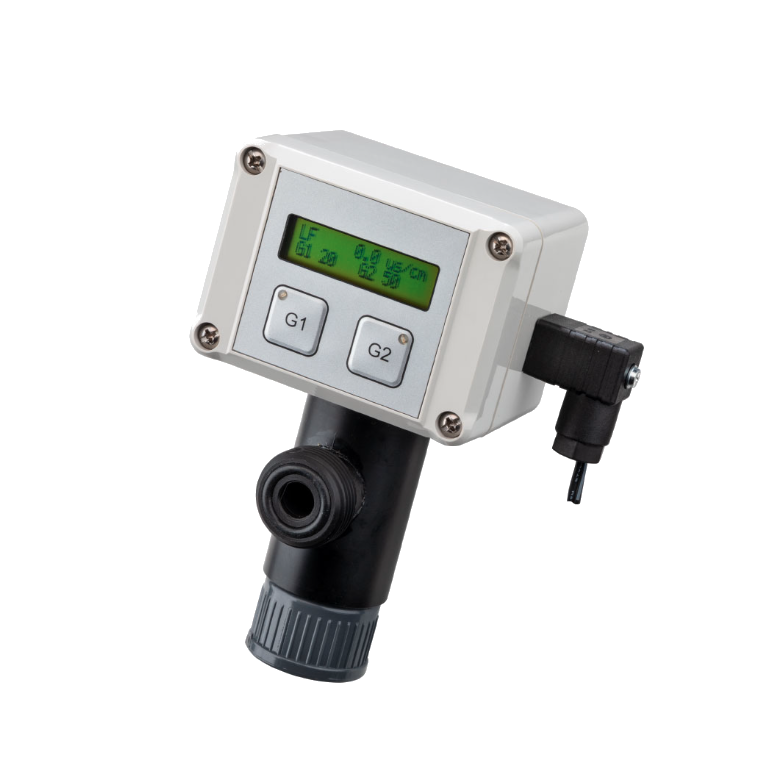

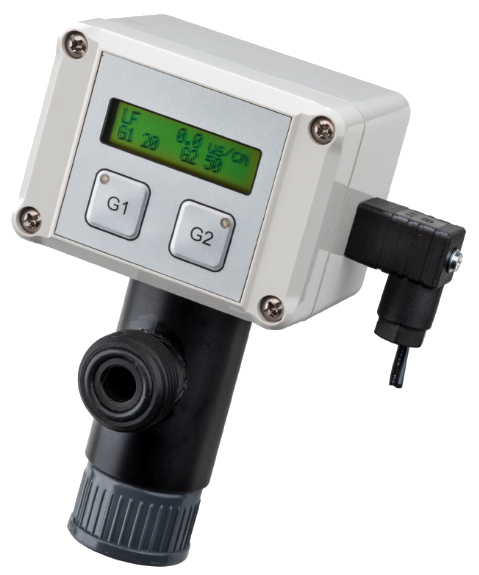

D 200 | Digital | bis 199,9 | Ja | Edelstahl Patrone / Wand | MGV, pot. Kontakt | 10000215 | Download |
DB 400 | Digital | bis 200 | Ja | Edelstahl Patrone / Wand | Batterie- betrieben | 10000216 | Download |
LED 320 | LED | bis 20 | 10 / 10-20 / 20 | Edelstahl Patrone | Batterie- betrieben | 10000219 | Download |
LED 520 | LED | bis 20 | 1,0 / 1-5 / 5-10 / 10-20 / 20 | Edelstahl Patrone | - | 10000218 | Download |
